Type HSNK250
The pump is equipped with in-built chevron gear deceleration device . It has the properties of high transmission efficiency, low noises, stable operation, small size and compact construction. During the running, high-speed shaft can automatically adjust in horizontal direction, which makes it has balanced and reliable transmission, low friction coefficient, high lubrication, low temperature rising at power end, long-time continuous operation, etc. Input and output valves for fluid end of the pump are designed in mutually perpendicular position to increase the working pressure. According to different parameter requirements, different kind of stuffing box can be used. It is make sealed. It is very convenient and save time. The max.crankshaft thrust force is 82KN.

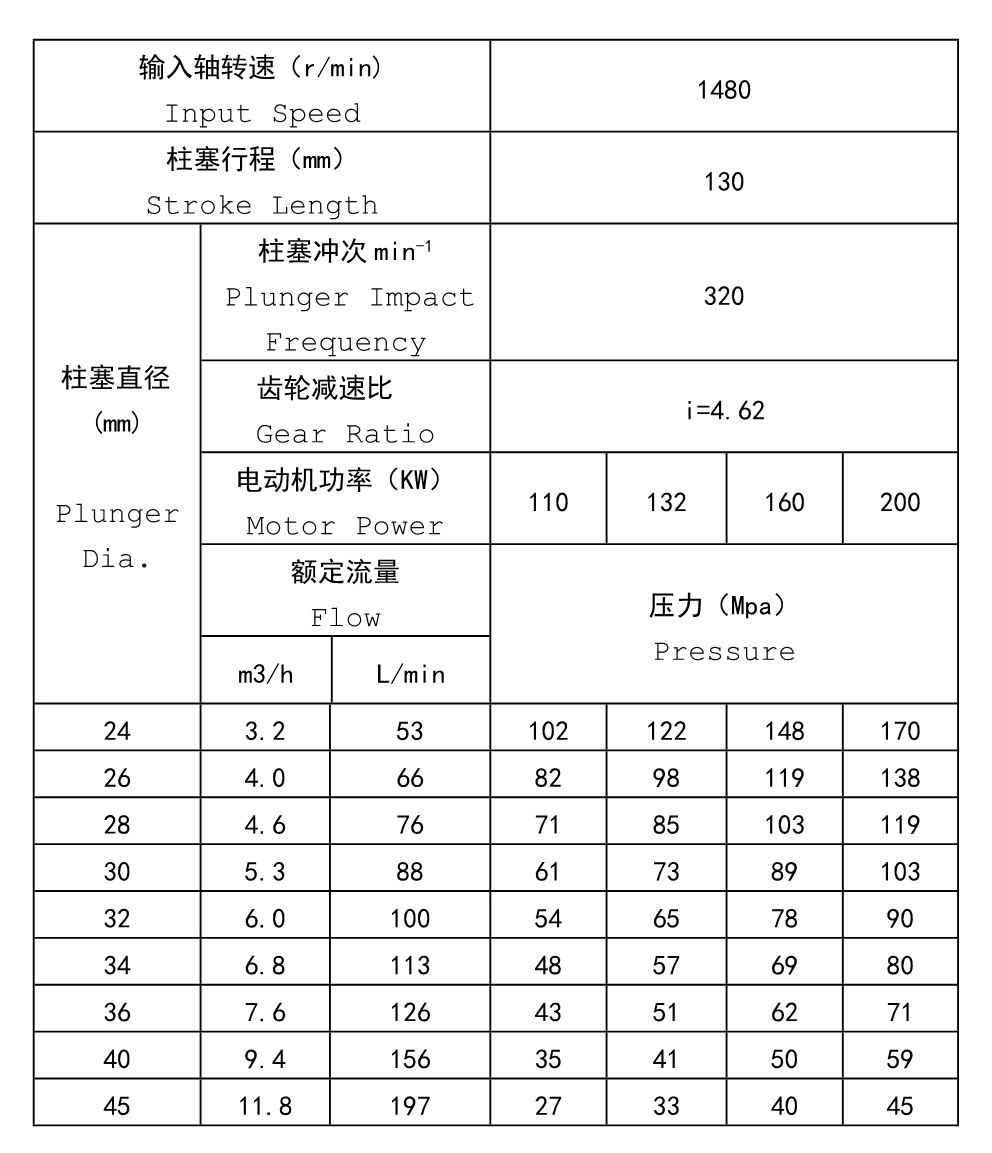

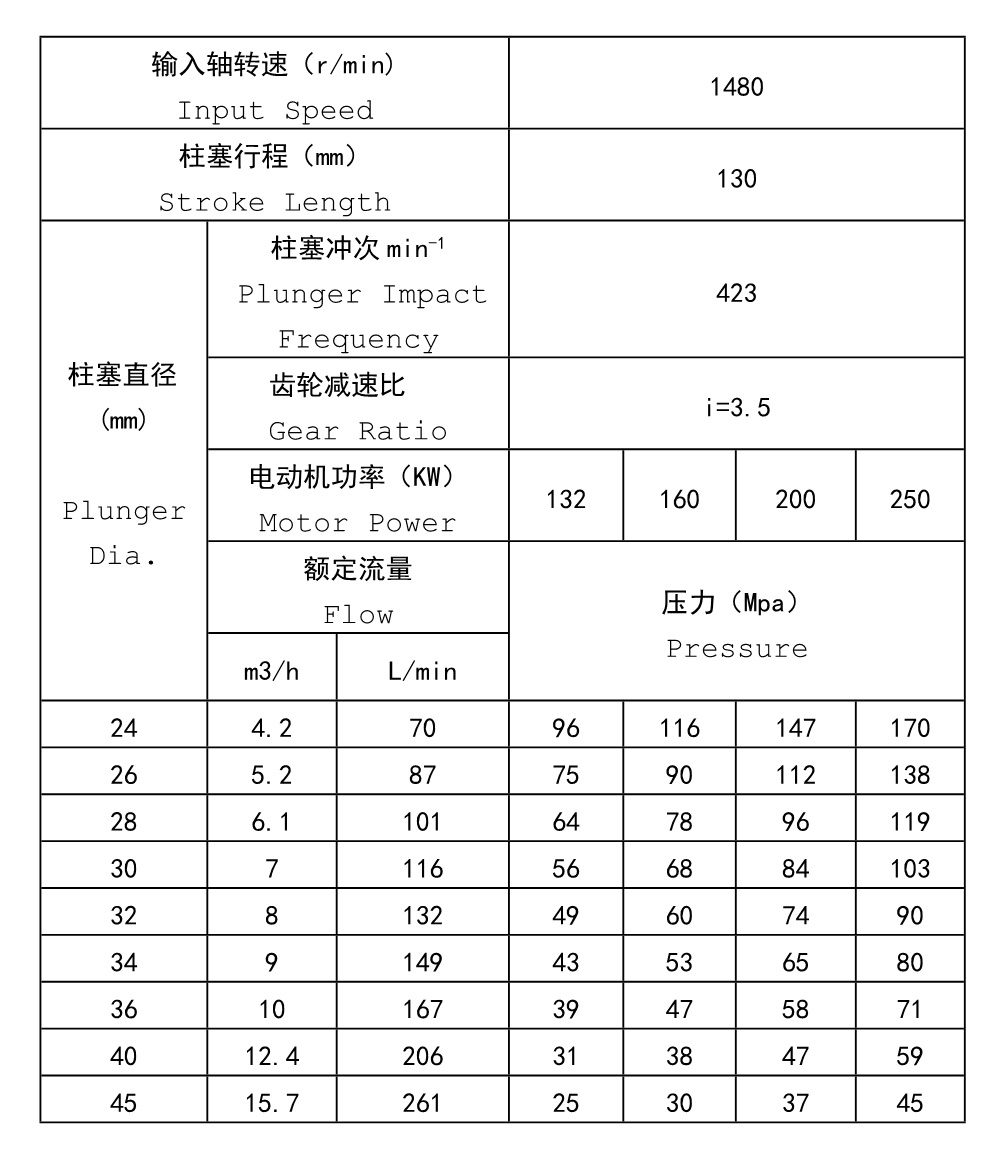

Technical Data
泵重 Pump Weight 895kg 進口 Inlet G11/2 出口 Outlet G13/8-12牙
